Load cells are critical components in modern weighing and force measurement systems. Among the many types of load cells, the Double Ended Shear Beam Load Cell stands out for its versatility and robustness. This article explores the design, functionality, applications, and benefits of double-ended shear beam load cells.

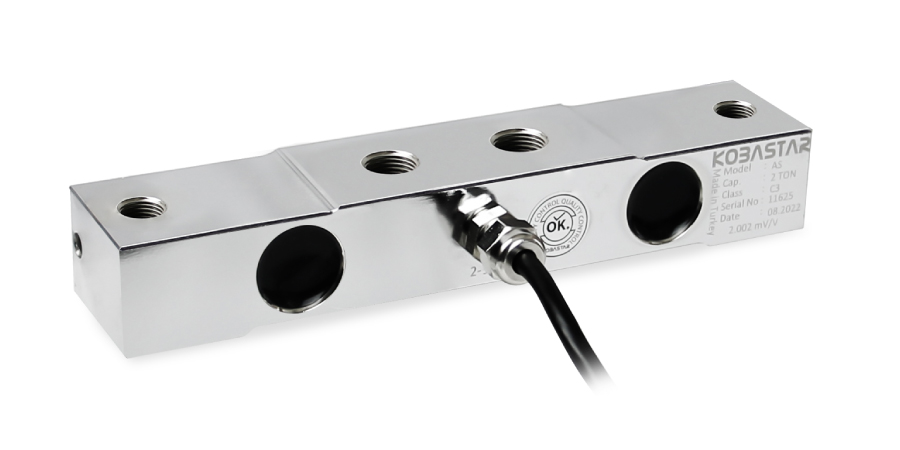

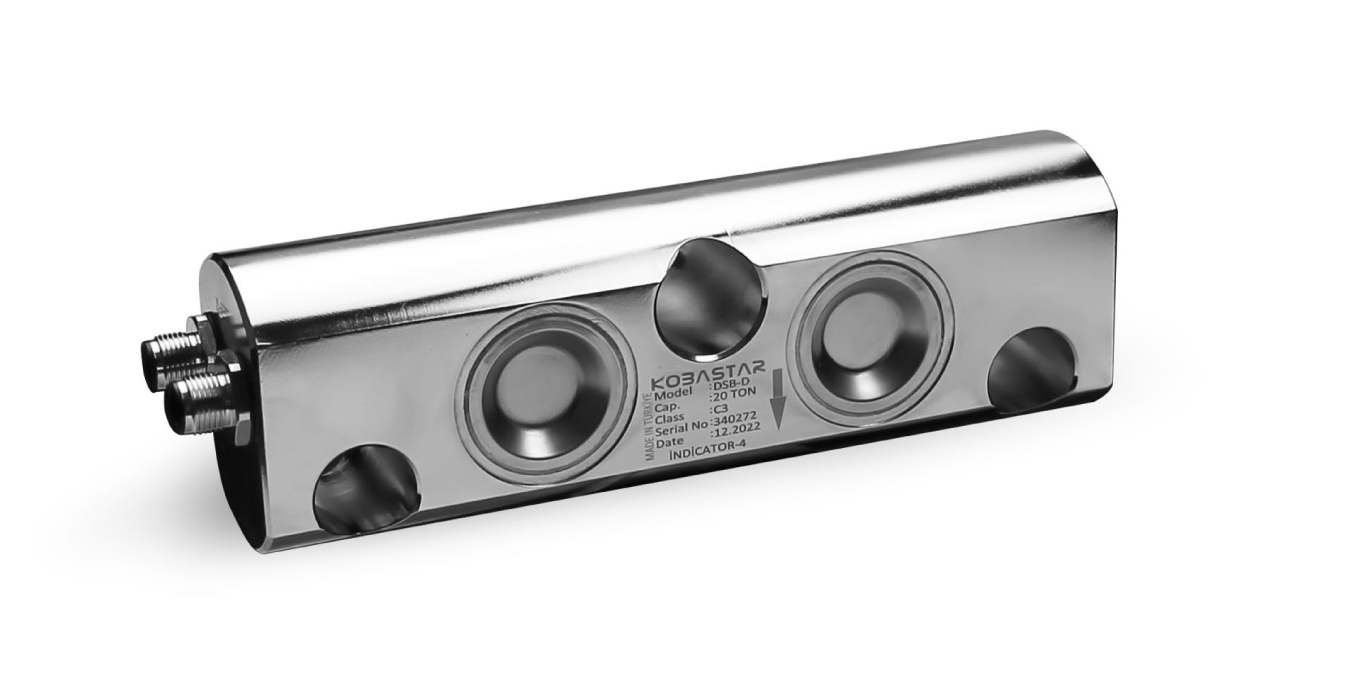

What is a Double Ended Shear Beam Load Cell?

A double ended shear beam load cell is a type of force transducer designed to measure weight or force by converting a mechanical force into an electrical signal. Unlike single-ended shear beam load cells, double-ended models are supported at both ends, with the load applied at the center of the beam. This configuration enhances their stability and capacity for heavy-duty applications.

Design and Working Principle

The double-ended shear beam load cell typically features a robust steel or stainless steel body, ensuring durability and resistance to harsh environments. The key components include:

  • Shear Beam: The load is applied to the center of the beam, causing it to experience shear stress.
  • Strain Gauges: These are affixed to the shear beam. When the beam deforms under load, the strain gauges measure the deformation and produce an electrical signal proportional to the force applied.
  • Mounting Points: The ends of the load cell are securely mounted, while the center point bears the load.

The electrical output from the strain gauges is processed by a weighing indicator or controller to display the weight or force value.

Applications

Double ended shear beam load cells are commonly used in industrial and commercial settings where heavy-duty weighing is required. Typical applications include:

  1. Truck Scales: Their high capacity and robust design make them ideal for weighing trucks and other heavy vehicles.
  2. Silo and Tank Weighing: They are used to measure the weight of materials stored in large silos or tanks.
  3. Hopper Weighing Systems: Essential for batch processing in industries such as food and pharmaceuticals.
  4. Rail Weighing Systems: Ideal for weighing railcars due to their ability to withstand dynamic and static loads.
  5. Heavy-Duty Platforms: Commonly used in industrial floor scales and other heavy-duty platforms.

Advantages of Double Ended Shear Beam Load Cells

  1. Enhanced Stability: The dual mounting points reduce movement and improve measurement stability.
  2. Load Distribution: The design ensures even load distribution, minimizing stress concentrations and extending the load cell’s lifespan.
  3. Environmentally Resistant: Available with IP67 or IP68 ratings, these load cells can operate in harsh environments, including exposure to water and dust.
  4. Cost-Effective: Their durability and minimal maintenance requirements make them a cost-efficient choice for long-term use.

Double ended shear beam load cells are an indispensable part of many industrial weighing systems. Their combination of strength, precision, and reliability makes them suitable for demanding applications. When properly installed and maintained, they provide consistent performance and long service life, ensuring accurate and efficient operations in various industries.
