Bending beam load cells are an essential component in modern weighing and force measurement systems. Their precision, versatility, and reliability make them ideal for a wide range of applications across industries such as manufacturing, agriculture, transportation, and healthcare.

What is a Bending Beam Load Cell?

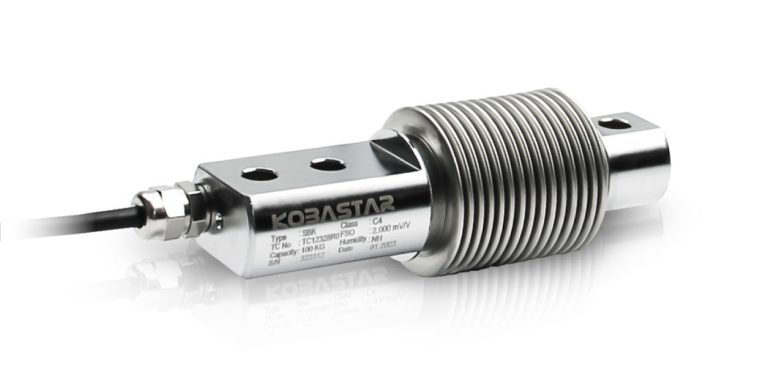

A bending beam load cell is a type of force measurement device that operates on the principle of bending under load. It consists of a metal beam (usually made of high-strength materials like stainless steel or aluminum) that bends slightly when a force or weight is applied. Strain gauges mounted on the beam measure this deformation, converting it into an electrical signal that correlates with the applied load.

Working Principle

Bending beam load cells use the strain gauge principle to measure weight or force. Here’s how they work:

  1. Application of Load: When weight or force is applied to the load cell, the metal beam bends proportionally.
  2. Deformation Detection: Strain gauges bonded to the beam experience deformation as the beam bends.
  3. Electrical Signal Generation: The deformation alters the electrical resistance of the strain gauges, which is detected by a Wheatstone bridge circuit.
  4. Signal Conversion: The change in resistance is converted into a voltage signal, which is then amplified and processed to display the weight or force.

Applications of Bending Beam Load Cells

Bending beam load cells are used in numerous industries due to their adaptability and precision:

1. Industrial Weighing

  • Platform scales
  • Conveyor belt scales
  • Hopper and tank weighing

2. Agricultural Equipment

  • Livestock scales
  • Grain silo weighing

3. Medical Devices

  • Patient lifting systems
  • Bed scales

4. Transportation

  • On-board vehicle weighing
  • Axle weight measurement

Bending beam load cells are indispensable tools in the field of weighing and force measurement. Their precision, versatility, and durability make them suitable for a wide array of industrial and commercial applications. Whether in a factory, farm, or hospital, bending beam load cells ensure accurate and reliable weight measurement, enhancing efficiency and safety.
