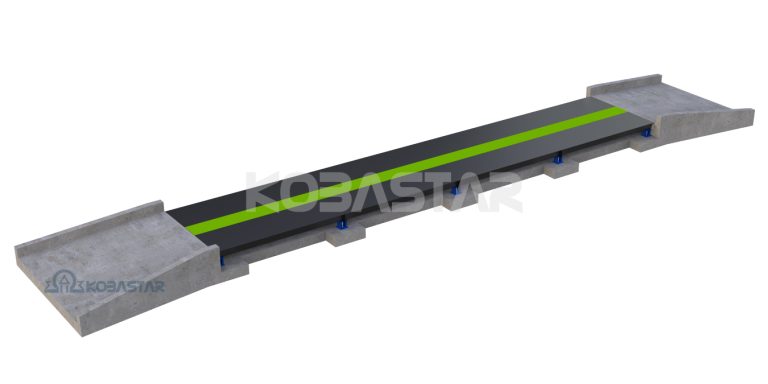

- Ts8 series scale is full steel platform. It is mounted on the floor, with reinforced concrete ramps, it is easily removed.
- TS8 series V beam system is modular type ground top weighs. Twisted steel profiles are used in the V form on the platform. V beams are welded without spacing to the top coating sheet.
- The top coating sheet is 10 mm thick, with varying according to the weigher capacity. Installation is the easiest model. It can be easily moved to another area when requested.
- We use TS8 in the Orchid K1 weighing indicator A/D cycle with high precision 1/30000 is a robust and reliable weighing indicator that contains reset, automatic reset range features in the opening with adjustable zero tracking range.
- OIML has R76 and European type approval certificate.
- Low battery indicator and charging protection circuit
- Automatic closing and power protection feature
- Collecting
- High and Low weighing indicator
- RS232 Communication
- Kobastar Windows based kantar program is very simple and easy to use. It has xml, excel, pdf, html, txt and reporting functions with a powerful database that knows how to use computers.
- Provides remote traceability with the optional web-based database.
- Light management and plate reading systems can be easily integrated.
- OIML R60 C4 certified with printing type 30 ton capacity.
- With stainless steel body and IP68 protection, negative environmental conditions and corrosion is extremely durable. With the standard offered mounting kits, it prevents the wrong weighing by maintaining lateral loads.
- Optionally KOBASTAR TSD model digital load cells are also used.
