KOBASTAR INDUSTRIAL WEIGHING SYSTEMS
Features:

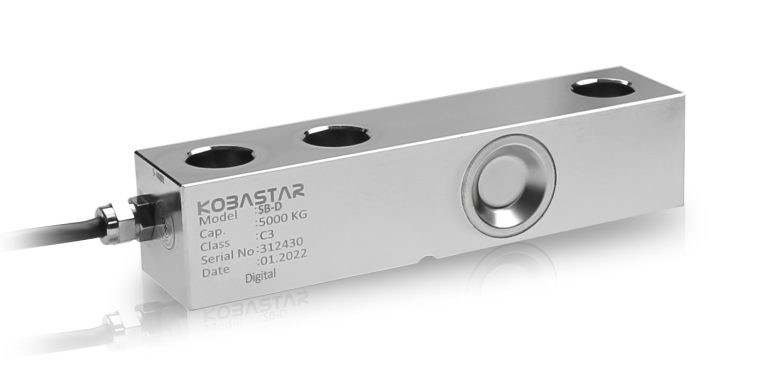

SB-D is a high-precision digital shear-beam load cell available from 100 kg to 20 t. Its integrated ADC and RS485 interface transmit weight data digitally. The alloy-steel or stainless-steel body, hermetic sealing, and IP68 protection suit demanding industrial applications.
Applications:
Low-profile platform scales, tank and silo weighing, pallet-truck scales, and industrial weighing systems.
Stock code:SB-D
| Capacity | 100, 150, 200, 250, 300, 500, 750 kg; 1, 2, 3, 5, 10, 15, 20 t |
| Accuracy class | C3 |
| Minimum load | 0 kg |
| Maximum number of divisions (nLC) | 3000 |
| Minimum measurement range | 10000 |
| Total error | ±0.01 %FS |
| Communication | Digital RS485 |
| Communication speed | 9600 / 19200 bps |
| Linearity | ±0.02 %FS |
| Repeatability | ±0.01 %FS |
| Insulation resistance | ≥5,000 MΩ (100 V DC) |
| Compensated temperature | -10…+40 °C |
| Operating temperature | -30…+70 °C |
| Power supply | 12 V DC / 750 mA |
| Safe overload | 150 %FS |
| Ultimate load | 300 %FS |
| Protection class | IP68 |
| Material | Alloy steel / stainless steel |
| Cable | 4×0.22 mm² |
