KOBASTAR INDUSTRIAL WEIGHING SYSTEMS
Features:

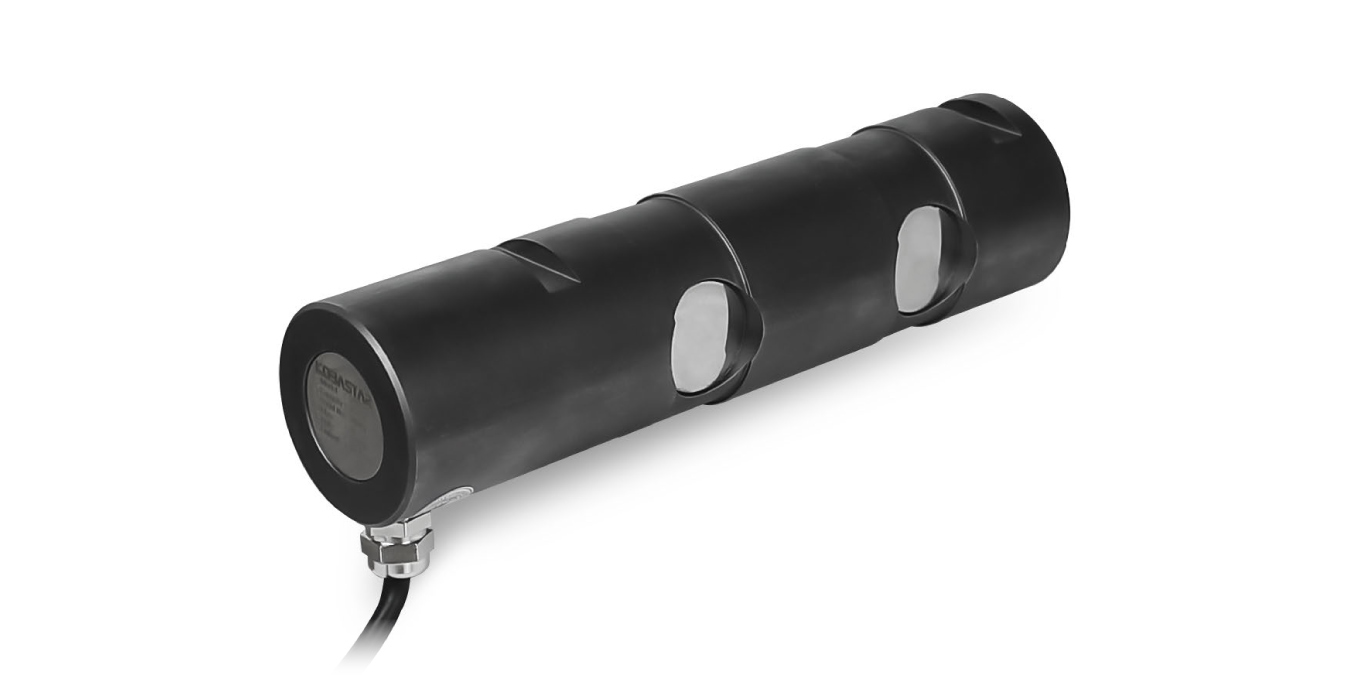

- LPC is a pin type cylindrical load cell with high precision and 4-point measurement.
- It is used in cranes and mobile weighing applications.
- It can be produced in desired sizes and capacities.
- Standard mV/V signal output, 4-20mA and 0-10V Analog and RS485 Digital output options.
Application Areas:
- Crane overload systems
- Mobile weighing systems
Categories: Load Pin
Stock code:LPC
| Capacity | 2-60 t |
| Accuracy Class | D1 |
| Minimum Load | 0 kg |
| Maximum Number of Verification Scale Intervals (nLC) | - |
| Minimum Verification Scale Interval (Y=Emax/Vmin) | - |
| Total Error | ±0.5 %FS |
| Rated Output (FS) | 1.2 ±0.2 mV/V |
| Zero Balance | ±1 %FS |
| Input Resistance | 380 Ω ±20 Ω / 720 Ω ±20 Ω |
| Output Resistance | 350 Ω ±5 Ω / 702 Ω ±5 Ω |
| Insulation Resistance | ≤5000 MΩ (100 VDC) |
| Compensated Temperature Range | -10 °C to +40 °C (optional) |
| Operating Temperature Range | -30 °C to +70 °C |
| Recommended Excitation Voltage | 10 VDC |
| Maximum Excitation Voltage (Umax) | 15 VDC |
| Safe Overload | 150 %FS |
| Ultimate Overload | 300 %FS |
| Protection Class (EN 60529) | IP67 |
| Load Cell Material | Alloy steel / Stainless steel |
| Cable | 4×0.22 mm² |
