KOBASTAR INDUSTRIAL WEIGHING SYSTEMS
Features:

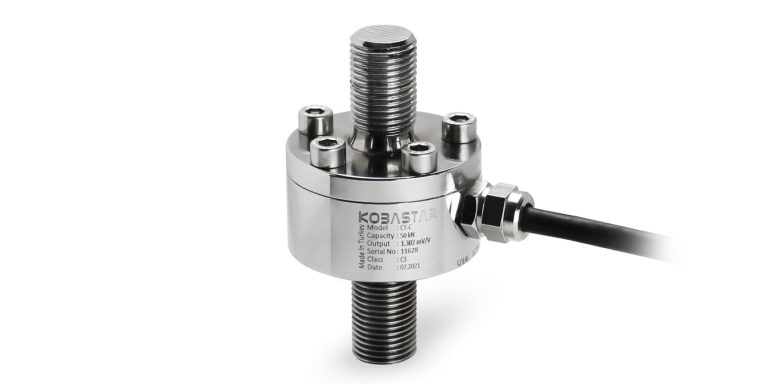

- CTC is a high precision compression and tensile load cell with capacities ranging from 0.5kN to 50kN.
- Nickel plated alloy body (Ops. Stainless Steel) and hermetic sealing ensure reliable precision in demanding industrial applications.
Application Areas:
- Force test machines
- Tensile rupture test machines
Stock code:CTC
| Capacity | 0.5–50 kN |
|---|---|
| Accuracy Class (ISO 376) | D1 |
| Minimum Load | 0 kg |
| Linearity | ≤ ±0.5 %FS |
| Repeatability | ≤ ±0.5 %FS |
| Deflection at Rated Load (mm) | 0.05–0.25 |
| Rated Output (FS) | 1.00 mV/V ± 0.1 %FS |
| Zero Balance | ≤ ±0.1 %FS |
| Input Resistance | 750 Ω ± 30 Ω |
| Output Resistance | 703 Ω ± 5 Ω |
| Insulation Resistance | ≤ 5000 MΩ (100 VDC) |
| Compensated Temperature Range | -10 ~ +40 °C |
| Operating Temperature Range | -30 ~ +70 °C |
| Recommended Excitation Voltage | 10 VDC |
| Maximum Excitation Voltage (Umax) | 15 VDC |
| Safe Overload | 150 %FS |
| Ultimate Overload | 300 %FS |
| Protection Class (EN 60529) | IP68 / IP67 |
| Load Cell Material | Steel / Stainless Steel |
| Cable | 4×0.14 mm² |
