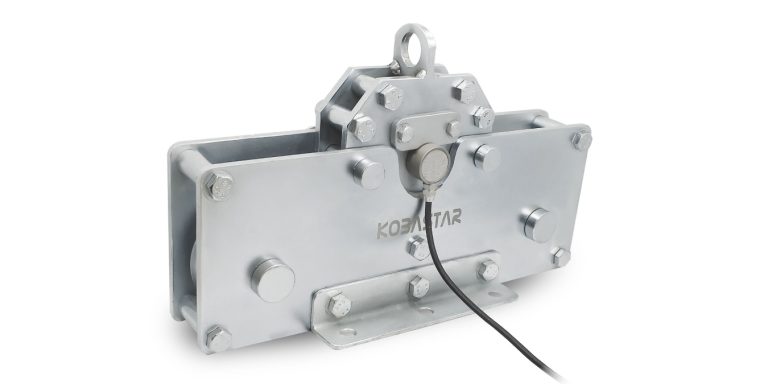

Name: RLT Running Line Tensiometer
Brand: KOBASTAR
SKU: KOBASTAR-RLT

To view datasheet files, you must enter your e-mail address and type the verification code sent to your e-mail.

E-mail address

To view datasheet files, you must enter your e-mail address and type the verification code sent to your e-mail.

E-mail address

KOBASTAR INDUSTRIAL WEIGHING SYSTEMS

Features:

RLT Moving Rope Strain Sensor is a load cell specially designed to measure the tension applied to moving ropes.
It is mounted on the moving rope in the cranes, there is no need for any revision in the crane for installation, it is very easy to install.
Robust body equipped with roller bearings, capacity options from 1 ton to 50 tons.
Rope diameters from 6mm to 52mm.
Wired and wireless operation options corrosion resistant stainless steel or galvanized steel construction.
Standard mV/V signal output, 4-20mA and 0-10V Analog and RS485 Digital output options.

Application Areas:

Stock code:RLT

Capacity	1 to 50 tonnes
Accuracy Class	D1
Minimum Load	0 kg
Maximum Number of Divisions (nLC)	–
Minimum Measurement Range (Y=Emax/Vmin)	–
Total Error	±0.5 %FS
Rated Output (FS)	1.2 ± 0.2 mV/V
Zero Balance	±1 %FS
Input Resistance	380 Ω ± 20 Ω / 720 Ω ± 20 Ω
Output Resistance	350 Ω ± 5 Ω / 702 Ω ± 5 Ω
Insulation Resistance	≤ 5000 MΩ (100 VDC)
Compensated Temperature Range	-10 ~ +40 °C (option)
Operating Temperature Range	-30 ~ +70 °C
Recommended Excitation Voltage	10 VDC
Maximum Excitation Voltage (Umax)	15 VDC
Safe Overload	150 %FS
Breaking Load	300 %FS
Protection Class (EN 60529)	IP66
Load Cell Material	Galvanized steel / stainless steel
Cable	4×0.22 mm²
