KOBASTAR INDUSTRIAL WEIGHING SYSTEMS

Features:

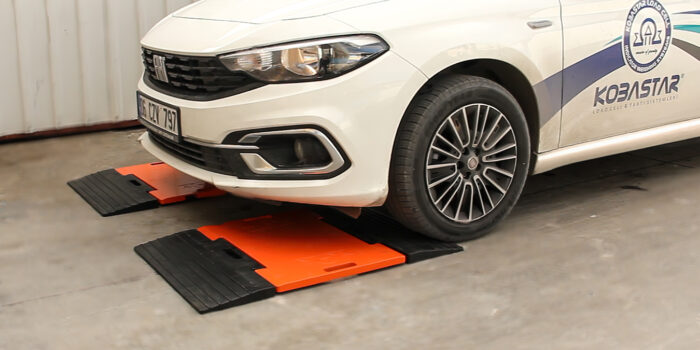

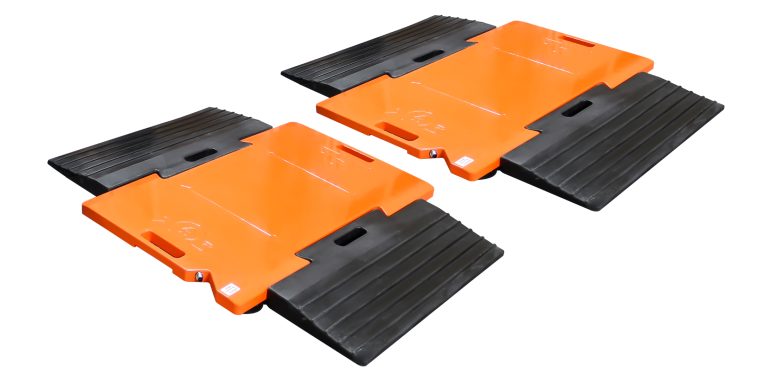

  • Portable Axle Scales Truck, Truck, Tractor, Aircraft, Train etc. It is produced from light alloy aluminum material for weighing axle weights of vehicles, easy to carry.
  • It has a compact structure with load cells specially produced forportable axle scales.
  • Thanks to the built-in rubber ramps, vehicles can easily climb on the scale, the height is only 38 mm.
  • Platform dimensions are standard 500x700x38 mm.
  • There are wired and wireless indicator options.
  • Provides excellent accuracy with 1/3000 division accuracy.
  • Weighing indicator with special case is easily connected to axle scales wirelessly, shows the weights of the axles weighed separately and the total weight on the screen.
  • Thermal printer prints the weights of the weighed axles, total weight, date and time.
  • It can be easily transported to the desired location with its carrying handle, it is lightweight.

Application Areas:

  • Weight control for trucks, lorries and other land and air vehicles
Categories:

Stock code:AXLE-WBI

ModelAKS
Capacity2×5 – 2×10 – 2×20 TON
Division5 – 10 kg
Platform Dimensions700×500×38 mm
Platform MaterialAluminium
Ramp MaterialRubber
Protection ClassIP66
Operating Temperature-10 °C to +40 °C
Approximate Weight32 kg
Wireless Frequency430 / 470 MHz
Communication Distance30 m (80 m in open area)
A/D ConversionΣ-Δ 24 bit
Power Supply7.4 V / 5 Ah battery; 8.4 V / 1 A charger
Battery Operating Time50 hours
Display128×64 Dot Matrix GLCD
Weight Unitskg, tonne, lb, kN
Printer50 mm receipt printer
Indicator Dimensions280×250×100 mm

Portable Axle Scale Specifications:

What is the Portable Axle Scale?

Portable Axle Scale
Portable Axle Scale

Portable axle cantilever is a portable device and is used to measure the axle loads of vehicles. The load of acne refers to the weight of each wheel of a vehicle. An overloaded tool can lead to problems in terms of road safety and abrasion, so the axle loads should be checked regularly.
