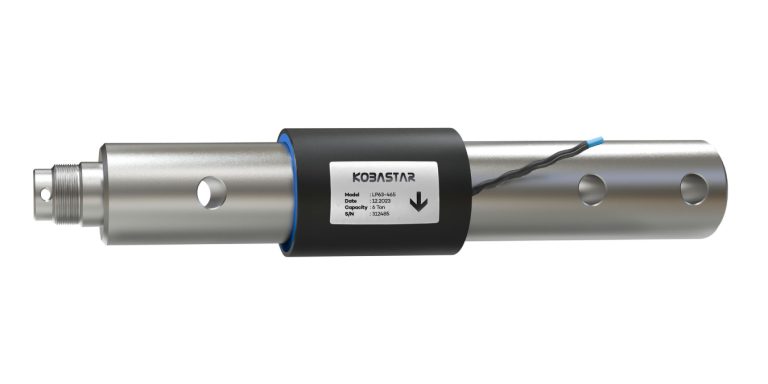

LP63-465 Feed Machinery Load Cell

SKU: KOBASTAR-LP63-465

5.7 ton

0 People watching this product now!

Fast Delivery

Fair Price

24/7 Support

Certified Production

LP63-465 is a high precision load cell for feed mixers and mobile weighing with 5.7 Ton capacity.

With its galvanized alloy steel body and sealing protection, it provides reliable precision in demanding industrial applications.

With its housing made of aluminum material with two side seals, it prevents dust and water from entering the measurement area. and provides IP67 class protection.

If you would like any more information about Weigh Bar Load Cell, please contact us and a member of our team would be happy to provide support.

Applications

  • Feed Mixing Machines
  • Mobile Weighing
  • Animal Scales
Capacity (Stac / Mobile)8550Kg / 5700Kg
Accuracy Class: D1
Minimum Load: 0 kg
Maximum Intervals (nLC): 1000 kg
Minimum Verification Interval: 4000 kg
Total Error: ±0.05 %FS
Output Sensitivity (FS)1.20 / 0.80 ± 0.05
Zero Balance:  ± 1 %FS
Input Resistance: 380 Ω ± 20 Ω
Output Resistance: 351 Ω ± 3 Ω
Isolation Resistance:  ≤ 5000 MΩ (100VDC)
Compansated Temperature: -10 ˜ + 40  °C
Operating Temperature: -30 ˜ + 70  °C
Excitation, Recommended Voltage: 10 VDC
Maximum Excitation Voltage (Umax): 15 VDC
Safe Overload: 150 % FS
Ultimate Overload: 300 % FS
Ingress Protection (EN60529): IP 67
Element Material: Steel
Cable4x022mm – 9 Meter
