KOBASTAR INDUSTRIAL WEIGHING SYSTEMS

Features:

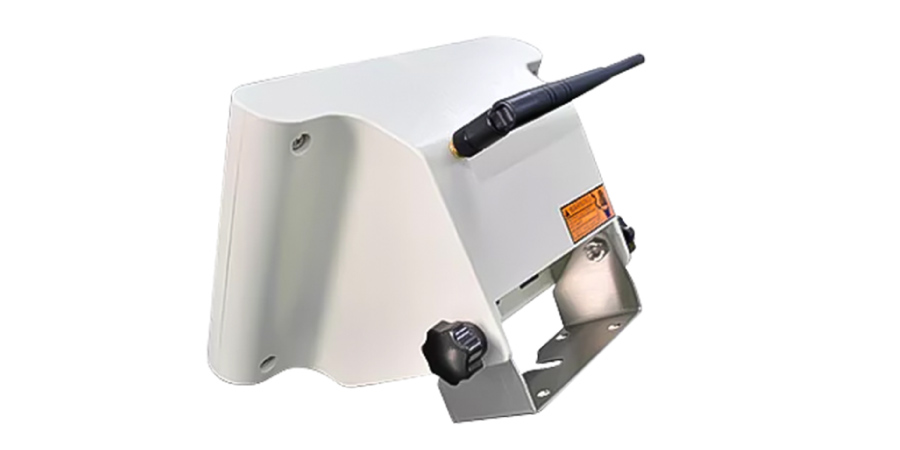

ID226 Weighing Indicators is a professional weighing indicator with high precision and fast stability that can be used in areas such as truck and truck scales, platform scales.
It can work in humid environments with its stainless steel box and IP66 protection class.

Stock code:ID226

6-bit large LED display has 33.4mm word height and green color options are available with red.
Metrological approval (CPA) accuracy according to 6000e, maximum screen resolution up to 200.000.
Standard serial ports x 2 supported: COM1 (RS232) + COM2 (RS485)
Standard MODBUS-RTU supports continuous transmission, command input and output, SICS and barcode scanner input.
Optional features are available: Home Ethernet connection, • Bluetooth connection, • Wifi connection
Supports basic weighing function, X10 function, simple control weighing and sorting function, counting function and animal weighing function.
The printer supports print function, it can print simple labels.
Product Material: • 304 stainless steel dust-proof case (optional desktop, round pipe supported, square pipe supported) • has IP66/IP65 protection class.
Zone supports direct connection to weighing platforms in 1 and Zone 2 regions.
Working Power Supply: Home DC 24VDC can work and the maximum power consumption of the entire device is less than 6 W. • Rechargeable 6V-4Ah battery (24 hours working time). Battery protection circuit and battery status indicator.
