KOBASTAR INDUSTRIAL WEIGHING SYSTEMS

Features:

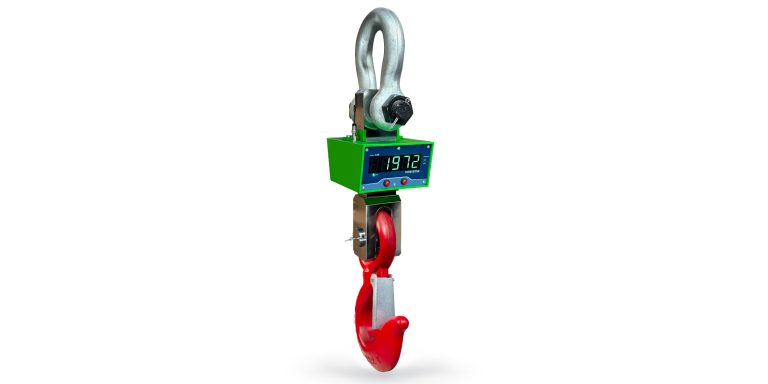

CS Crane Scales are electronic scales used for weighing products lifted from the hook of overhead cranes or mobile cranes. It offers the robustness and accuracy of traditional crane scales, with remote control and report retrieval capabilities.
These features give operators flexibility, allowing them to weigh products accurately and monitor data from anywhere. With its portable aluminum housing and WiFi integration, it provides uninterrupted communication with 200 meters of data transfer, even in confined spaces.
The CS Crane Scale combines reliability, ease of use and technological innovation, allowing you to optimize your industrial weighing processes. Moreover, it can be produced in different capacities such as 20, 30, 50 and 100 tons, thus offering solutions to suit various business needs.

Application Areas:

Categories: Crane Scale

Stock code:CS

Capacity	20 / 30 / 50 / 100 t
Accuracy Class	1/30000
Display	128×64 dot-matrix LCD
Status Indicators	5 status indicators
Keypad	2 function keys
ADC	24-bit Δ-Σ Delta-Sigma
A/D Conversion Rate	80 conversions/s
Resolution	0.5 µV/d
Load Cell Input Signal	-19.5 mV ... +19.5 mV
Load Cell Excitation	5 V / 300 mA
Number of Load Cells	Maximum 4 × 350 Ω
Display Dimensions	145×40 mm
Calibration	With reference weight
Filtering	5-step digital filter
Communication	433 MHz wireless interface, 32 channels
Wireless Range	200 m in open area
Enclosure	Handheld plastic housing
Power Source	6.4 V DC 1800 mAh lithium battery; 7.2 V charger
Operating Temperature	-40 °C ... +85 °C; 90% RH
Paper Size	58 mm
Printing Method	Thermal
