Coal Bagging Plant

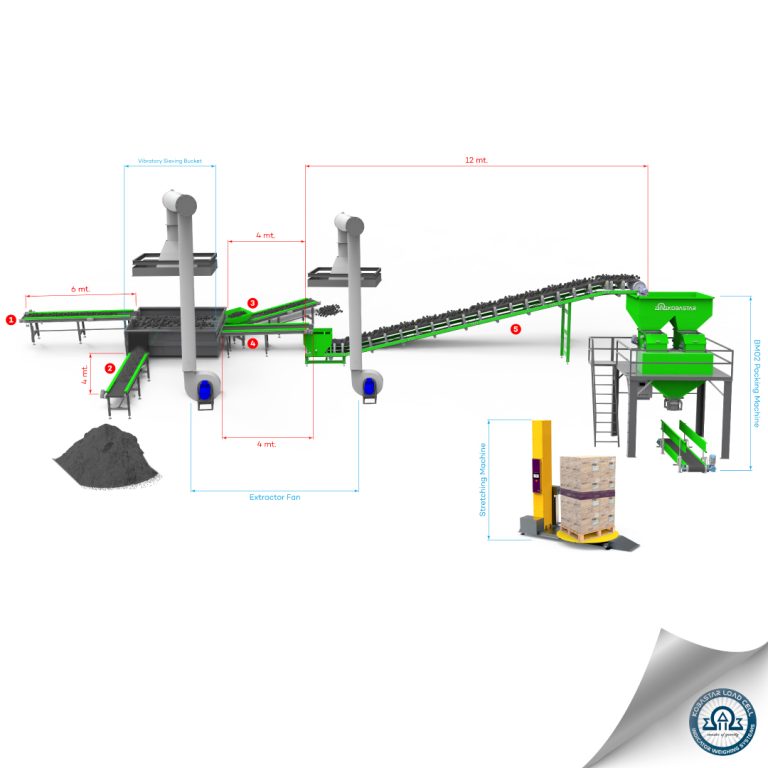

The coal bagging plant is an industrial system that automates the entire process from coal handling to packaging, ensuring high precision and operational efficiency. The illustrated plant showcases the components and dimensions designed to streamline coal processing, reduce costs, and save time. Focusing on the names, sizes and functions of the products mentioned in the image, you can find the details of the coal packing plant below.

Main Components of Coal Bagging Plant

Feeding Conveyor (6 meters)

The process begins with the 6-meter feeding conveyor, which ensures a consistent flow of coal into the production line. This conveyor facilitates the seamless transfer of raw materials to the subsequent processing stages.

Vibratory Sieving Bucket (4 meters)

The 4-meter vibratory sieving bucket is responsible for screening coal based on its size. This step removes unwanted debris and oversized particles, ensuring the quality of the coal before it proceeds further into the system.

Loading Conveyor (4 meters)

After sieving, the coal is transferred to a 4-meter-long loading conveyor. This conveyor moves the coal efficiently to the bunker system, maintaining the smooth flow of operations.

Extractor Fan

The extractor fan is an integral component that controls air circulation and dust within the plant. It ensures a clean working environment and enhances the system’s overall performance.

Output Conveyor (12 meters)

Once the coal is bagged, it is transported via a 12-meter output conveyor to the stretch wrapping machine. The extended length allows for handling large quantities of bagged coal efficiently.

BM02 Bagging Machine

The BM02 Bagging Machine is the centerpiece of the plant, offering precise weighing and automatic bagging of the coal. It ensures that each bag meets the required weight standard, providing consistency and reliability in the packaging process.

Stretch Wrapping Machine

The final step involves the stretch wrapping machine, which wraps the bagged coal with shrink film. This process protects the product during transportation and storage, ensuring it remains intact and free from damage.

How Coal Packaging Plant Works

The coal bagging plant leverages advanced automation technologies for efficient operations. The process involves the following steps:

• Raw Material Feeding: Coal is fed into the vibratory sieving bucket via the 6-meter feeding conveyor.
• Screening: The vibratory sieving bucket separates unwanted particles and prepares the coal for further processing.
• Transportation: The sieved coal is transferred to the bunker system using the 4-meter loading conveyor.
• Bagging: The BM02 Bagging Machine weighs and packages the coal into standard-sized bags.
• Output: The bagged coal is moved to the stretch wrapping machine via the 12-meter output conveyor.
• Wrapping and Storage: The stretch wrapping machine secures the coal bags, making them ready for transportation or storage.

Advantages of the Coal Bagging Plant

1. High Efficiency: Automation allows for maximum production speed and efficiency.
2. Precise Weighing: The BM02 Bagging Machine ensures every bag meets the exact weight specifications.
3. Cost Savings: Automation within the coal packing plant reduces labour costs and lowers operating expenses.
4. Environmentally Friendly: The extractor fan minimizes dust, promoting a cleaner and safer environment.
5. Product Protection: The stretch wrapping machine safeguards products during transportation and storage.

Kobastar Coal Bagging Systems

Kobastar is a leading provider of coal bagging systems, offering cutting-edge technology to streamline coal processing and packaging operations. Kobastar’s coal bagging plants are designed to meet various industrial requirements and provide the following features:

• Flexibility: Modular design allows customization for processing coal of different sizes.
• Durability: All equipment is constructed from robust materials, ensuring long-term reliability.
• Comprehensive Support: From installation to maintenance, Kobastar offers expert technical assistance at every stage.

Coal bagging plants represent a significant advancement in modern production systems, offering efficiency and cost-effectiveness for businesses. The design shown in the illustration emphasizes the importance of properly sized and well-integrated components to achieve optimal performance. Kobastar provides tailored solutions to meet the unique needs of coal processing and packaging industries.

You can contact us to get more information about coal bagging plant and discover the most suitable solutions for your business.
